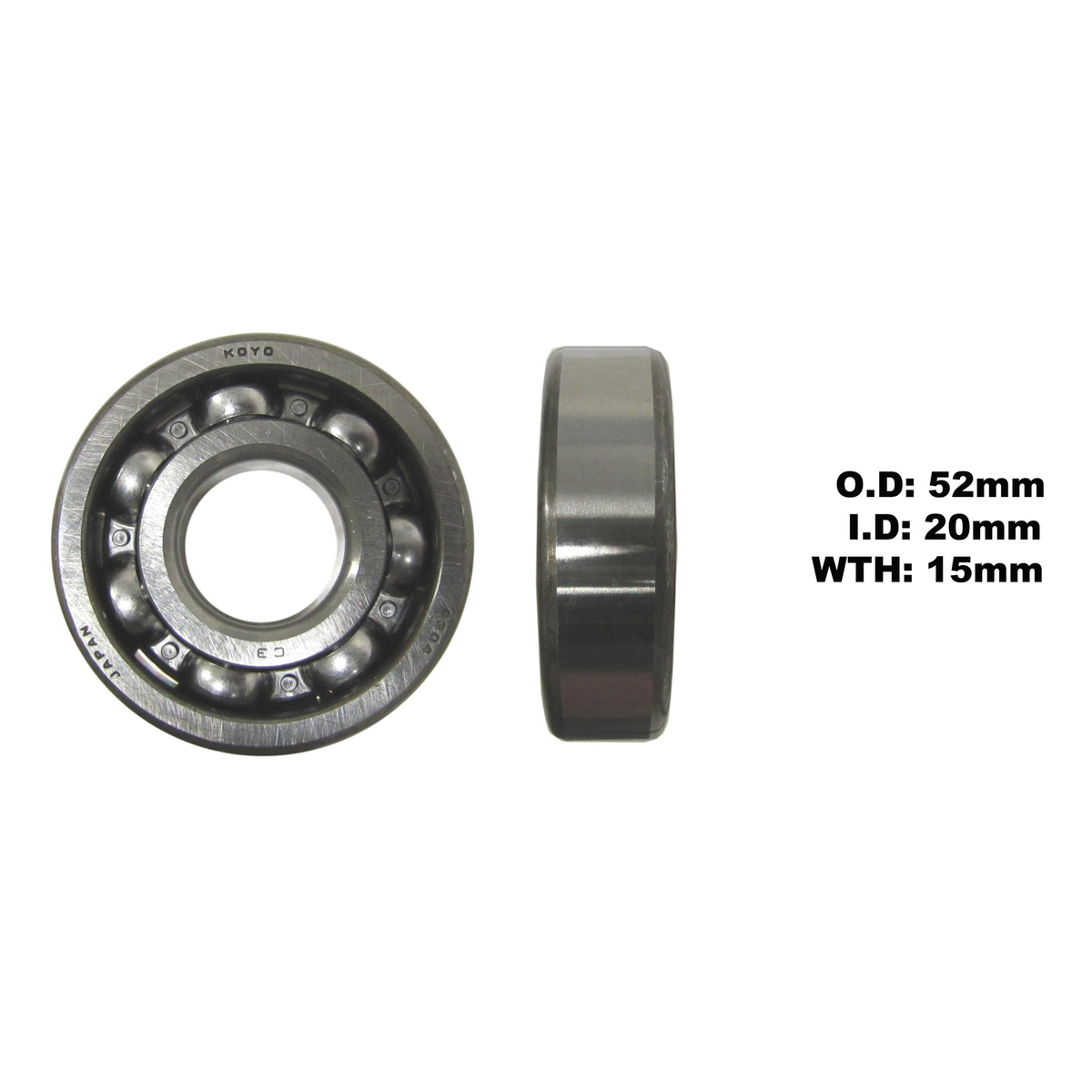

KOYO by JTEKT Bearing 6304
KOYO by JTEKT Bearing 6304
Part no. 6304C3
The KOYO by JTEKT Bearing 6304 from KOYO is listed to fit 55 models from 5 makes (Suzuki, Honda, Yamaha and others), including Suzuki DR-Z 70 (DR-Z70) 2008-2014, Suzuki FR 80 (FR80) 1975-1983 and Suzuki GP 100 (GP100) 1978-1983. It is part of our engine bearing range.
- Part number: 6304C3
- Fits Suzuki: DR-Z 70 (DR-Z70) 2008-2014, FR 80 (FR80) 1975-1983, GP 100 (GP100) 1978-1983, GP 125 (GP125) 1978-1983, GT 125 (GT125) 1978-1979, RB 50 (RB50) 1987, RM 100 (RM100) 1976, 2003, RM 125 (RM125) 1975 and 8 more
- Fits Honda: C 70 (C70) 1975-1986, C 90 CUB (C90CUB) 1983-1985, 1987-1996, CRF 50 F (CRF50F) 2004-2027, CRF 70 F (CRF70F) 2004-2012, CRF 80 F (CRF80F) 2004-2008, NH 90 YUPI 1991-1992, ST 50 DAX (ST50DAX) 1978, ST 70 DAX (ST70DAX) 1969-1996 and 6 more
- Fits Yamaha: DT 125 (DT125) 1977-1991, IT 125 (IT125) 1981, IT 175 (IT175) 1977-1981, RD 125 (RD125) 1986, YFM 50 RAPTOR 2004-2009, YFM 80 BADGER 1992-2001, YFM 80 RAPTOR 2002-2004, YT 125 (YT125) 1980-1985 and 5 more
- Fits Kawasaki: AR 50 (AR50) 1983-1991, AR 80 (AR80) 1983-1990, KE 125 (KE125) 1976-1983, KH 125 (KH125) 1983-1997, KVF 360 PRAIRIE 2003-2005, KX 100 (KX100) 1989-2014, KX 125 (KX125) 1974-1979, 1982-1984, KX 60 (KX60) 1983-2003 and 3 more
- Category: Engine Parts › Engine Bottom End › Engine Bearing
Specifications
| Brand | KOYO |
|---|---|
| Manufacturer Item No. | 6304C3 |
| Width | 15 mm |
| Inner Diameter | 20 mm |
| Outer Diameter | 52 mm |
Fits these bikes
This KOYO part is listed as fitting 55 models. Check your model and year below.
| Make | Model | Years |
|---|---|---|
| Honda | C 70 (C70) | 1975-1986 |
| Honda | C 90 CUB (C90CUB) | 1983-1985, 1987-1996 |
| Honda | CRF 50 F (CRF50F) | 2004-2027 |
| Honda | CRF 70 F (CRF70F) | 2004-2012 |
| Honda | CRF 80 F (CRF80F) | 2004-2008 |
| Honda | NH 90 YUPI | 1991-1992 |
| Honda | ST 50 DAX (ST50DAX) | 1978 |
| Honda | ST 70 DAX (ST70DAX) | 1969-1996 |
| Honda | TRX 70 FOURTRAX | 1986-1987 |
| Honda | TRX 90 SPORTRAX | 2002-2009 |
| Honda | XR 50 R (XR50R) | 2000-2003 |
| Honda | XR 70 R (XR70R) | 1997-2003 |
| Honda | XR 75 (XR75) | 1977-1978 |
| Honda | Z 50 R (Z50R) | 1979-1986 |
| KTM | 65 SX | 1999-2014 |
| Kawasaki | AR 50 (AR50) | 1983-1991 |
| Kawasaki | AR 80 (AR80) | 1983-1990 |
| Kawasaki | KE 125 (KE125) | 1976-1983 |
| Kawasaki | KH 125 (KH125) | 1983-1997 |
| Kawasaki | KVF 360 PRAIRIE | 2003-2005 |
| Kawasaki | KX 100 (KX100) | 1989-2014 |
| Kawasaki | KX 125 (KX125) | 1974-1979, 1982-1984 |
| Kawasaki | KX 60 (KX60) | 1983-2003 |
| Kawasaki | KX 65 (KX65) | 2000-2014 |
| Kawasaki | KX 80 (KX80) | 1981-1997 |
| Kawasaki | KX 85 (KX85) | 2001-2014 |
| Suzuki | DR-Z 70 (DR-Z70) | 2008-2014 |
| Suzuki | FR 80 (FR80) | 1975-1983 |
| Suzuki | GP 100 (GP100) | 1978-1983 |
| Suzuki | GP 125 (GP125) | 1978-1983 |
| Suzuki | GT 125 (GT125) | 1978-1979 |
| Suzuki | RB 50 (RB50) | 1987 |
| Suzuki | RM 100 (RM100) | 1976, 2003 |
| Suzuki | RM 125 (RM125) | 1975 |
| Suzuki | RM 60 (RM60) | 1979-1983, 2003 |
| Suzuki | RM 65 (RM65) | 2003-2005 |
| Suzuki | RM 80 (RM80) | 1986-2000 |
| Suzuki | RM 85 (RM85) | 2002-2014 |
| Suzuki | RV 125 VANVAN | 1973-1976 |
| Suzuki | TS 100 (TS100) | 1978, 1980-1982 |
| Suzuki | TS 125 (TS125) | 1973-1982 |
| Suzuki | TS 185 (TS185) | 1973-1981 |
| Yamaha | DT 125 (DT125) | 1977-1991 |
| Yamaha | IT 125 (IT125) | 1981 |
| Yamaha | IT 175 (IT175) | 1977-1981 |
| Yamaha | RD 125 (RD125) | 1986 |
| Yamaha | YFM 50 RAPTOR | 2004-2009 |
| Yamaha | YFM 80 BADGER | 1992-2001 |
| Yamaha | YFM 80 RAPTOR | 2002-2004 |
| Yamaha | YT 125 (YT125) | 1980-1985 |
| Yamaha | YT 175 (YT175) | 1982-1983 |
| Yamaha | YZ 100 (YZ100) | 1981 |
| Yamaha | YZ 125 (YZ125) | 1977-1985 |
| Yamaha | YZ 80 (YZ80) | 1993-2001 |
| Yamaha | YZ 85 (YZ85) | 2002-2018 |
Product details
KOYO deep groove ball bearings are the most common style of rolling bearing, largely thanks to the wide spread of sizes they come in. They support radial loads and can also take a degree of axial load in both directions at the same time.
Questions about this part
Will the KOYO by JTEKT Bearing 6304 fit my bike?
It is listed for 55 models, including Honda C 70 (1975-1986), Honda C 90 CUB (1983-1985, 1987-1996), Honda CRF 50 F (2004-2027), Honda CRF 70 F (2004-2012). The full list is in the "Fits these bikes" table on this page, and the fit check next to the price tells you straight away for your saved bike.
What is the part number?
The manufacturer part number is 6304C3. Our stock code is 800768.
How much is delivery?
Order before 3pm for same day dispatch. UK Next Day delivery is £7.99, and free on orders of £100 or more. Pre 12:00 (£9.99) and Pre 10:00 (£14.99) upgrades are charged at any order value.
Can I return it?
Yes. You can return it within 30 days of delivery for a refund. You pay the return postage unless the item is faulty, damaged or wrong, in which case we cover it. See our Returns page for how. Returns
