RFX Pro 2 Rear Axle Blocks SX/F TC/FC MC/F 125-525 >22
RFX Pro 2 Rear Axle Blocks SX/F TC/FC MC/F 125-525 >22
The RFX Pro 2 Rear Axle Blocks SX/F TC/FC MC/F 125-525 >22 from RFX is listed to fit 11 models from KTM and Husqvarna, including KTM 125 SX 2013-2022, KTM 150 SX 2013-2022 and KTM 250 SX 2013-2022. It is part of our chassis spares range.
- Part numbers: one per option, listed under Specifications
- Colour: Black, Blue, Orange, Red, Silver
- Fits KTM: 125 SX 2013-2022, 150 SX 2013-2022, 250 SX 2013-2022, 250 SX-F 2013-2022, 350 SX-F 2013-2022, 450 SX-F 2013-2022
- Fits Husqvarna: FC 250 (FC250) 2016-2022, FC 350 (FC350) 2017-2022, FC 450 (FC450) 2017-2022, TC 125 (TC125) 2016-2022, TC 250 (TC250) 2017-2022
- Category: Vehicle Parts › Chassis and Suspension › Chassis Spares
Specifications
| Brand | RFX |
|---|---|
| Manufacturer part numbers | FXAB 50300 99BK, FXAB 70300 99BU, FXAB 50300 99OR, FXAB 50300 99RD, FXAB 50300 99SV |
Fits these bikes
This RFX part is listed as fitting 11 models. Check your model and year below.
| Make | Model | Years |
|---|---|---|
| Husqvarna | FC 250 (FC250) | 2016-2022 |
| Husqvarna | FC 350 (FC350) | 2017-2022 |
| Husqvarna | FC 450 (FC450) | 2017-2022 |
| Husqvarna | TC 125 (TC125) | 2016-2022 |
| Husqvarna | TC 250 (TC250) | 2017-2022 |
| KTM | 125 SX | 2013-2022 |
| KTM | 150 SX | 2013-2022 |
| KTM | 250 SX | 2013-2022 |
| KTM | 250 SX-F | 2013-2022 |
| KTM | 350 SX-F | 2013-2022 |
| KTM | 450 SX-F | 2013-2022 |
Product details

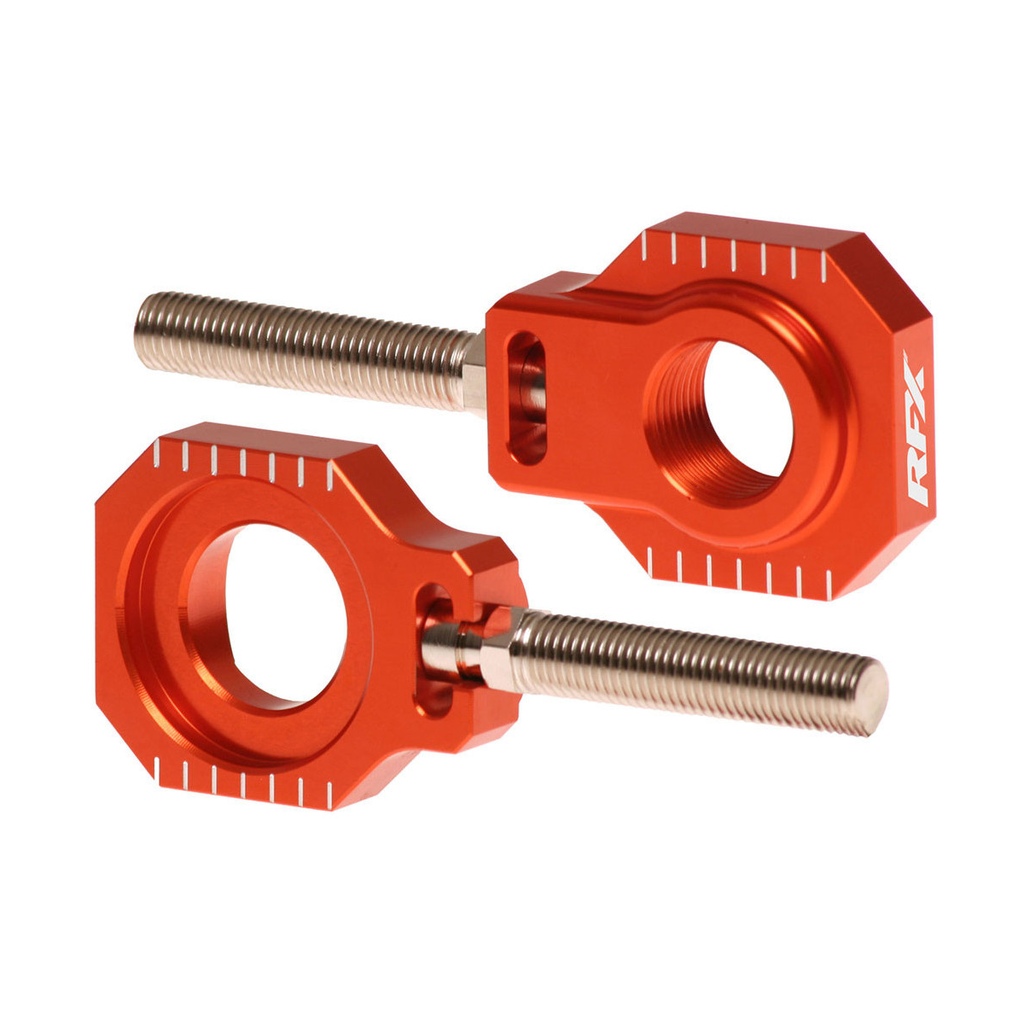

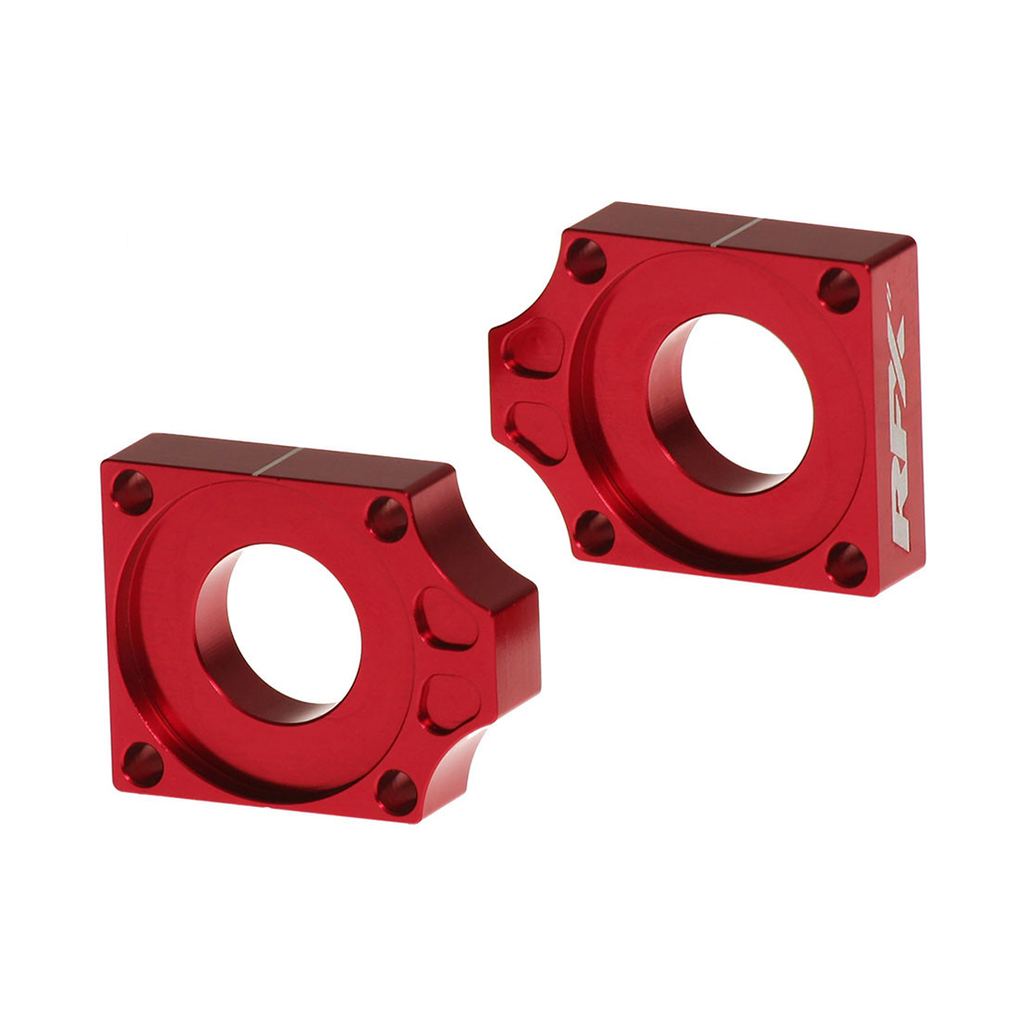

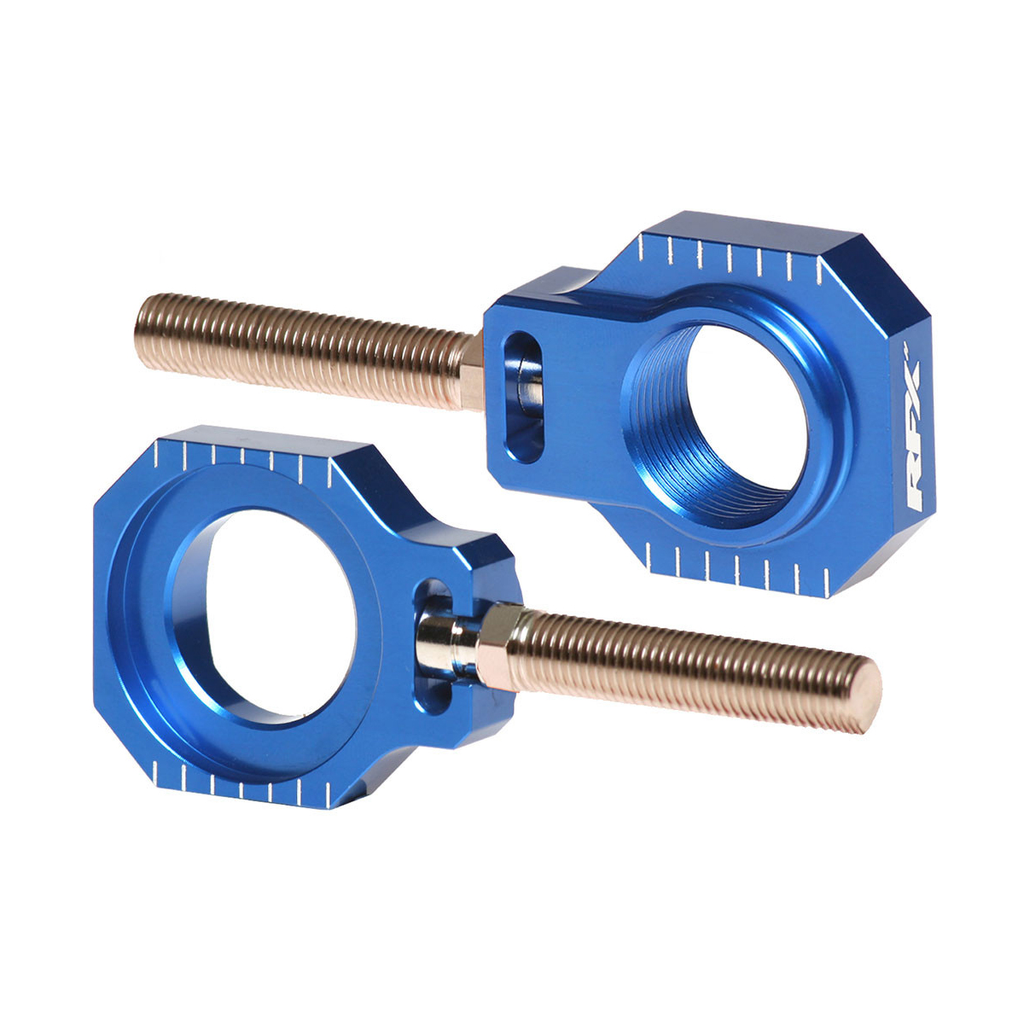

RFX Pro Series axle blocks make wheel changes quicker and easier, fitting simply and giving you more accurate wheel alignment. They are CNC machined from 7075 aerospace grade aluminium.
Key features
- Axle holder grips one side, so you can tighten it with a single spanner
- Laser etched RFX logo
- CNC machined 7075 aerospace aluminium
- Profile designed in CAD to save weight
- Closer tolerances for a better fit
- Colour anodised finish for a factory bike look
Fitting instructions
- Put the bike on a stand so the rear wheel is off the ground.
- Undo the rear axle nut and pull out the spindle.
- Lift the chain off the sprockets and take out the rear wheel.
- Take off the old axle blocks.
- Remove the bolts from the old axle blocks.
- KTM only: take the spindle out of the old axle block. This may need some heat and a vice, so take care not to damage the spindle.
- KTM only: fit the spindle into the new axle block, using red threadlock.
- Clean the swing arm area so it is free from dirt and debris.
- Place the new RFX axle blocks on the swing arm, checking that they are aligned and the bolts are in place.
- Clean the spindle and axle nut.
- Grease the spindle and wheel spacers with waterproof grease.
- Lift the wheel into place and put the chain back on.
- Push the spindle fully through and refit the axle nut, but do not tighten it fully yet.
- Use the axle blocks to square up the wheel, then adjust the chain to the correct tension (see your owner's manual for the figure).
- Tighten the axle nut to the torque given in your owner's manual.
Questions about this part
Will the RFX Pro 2 Rear Axle Blocks SX/F TC/FC MC/F 125-525 >22 fit my bike?
It is listed for 11 models, including Husqvarna FC 250 (2016-2022), Husqvarna FC 350 (2017-2022), Husqvarna FC 450 (2017-2022), Husqvarna TC 125 (2016-2022). The full list is in the "Fits these bikes" table on this page, and the fit check next to the price tells you straight away for your saved bike.
What is the part number?
Each option has its own manufacturer part number, listed under Specifications on this page. Our stock code is 110024-BLK.
