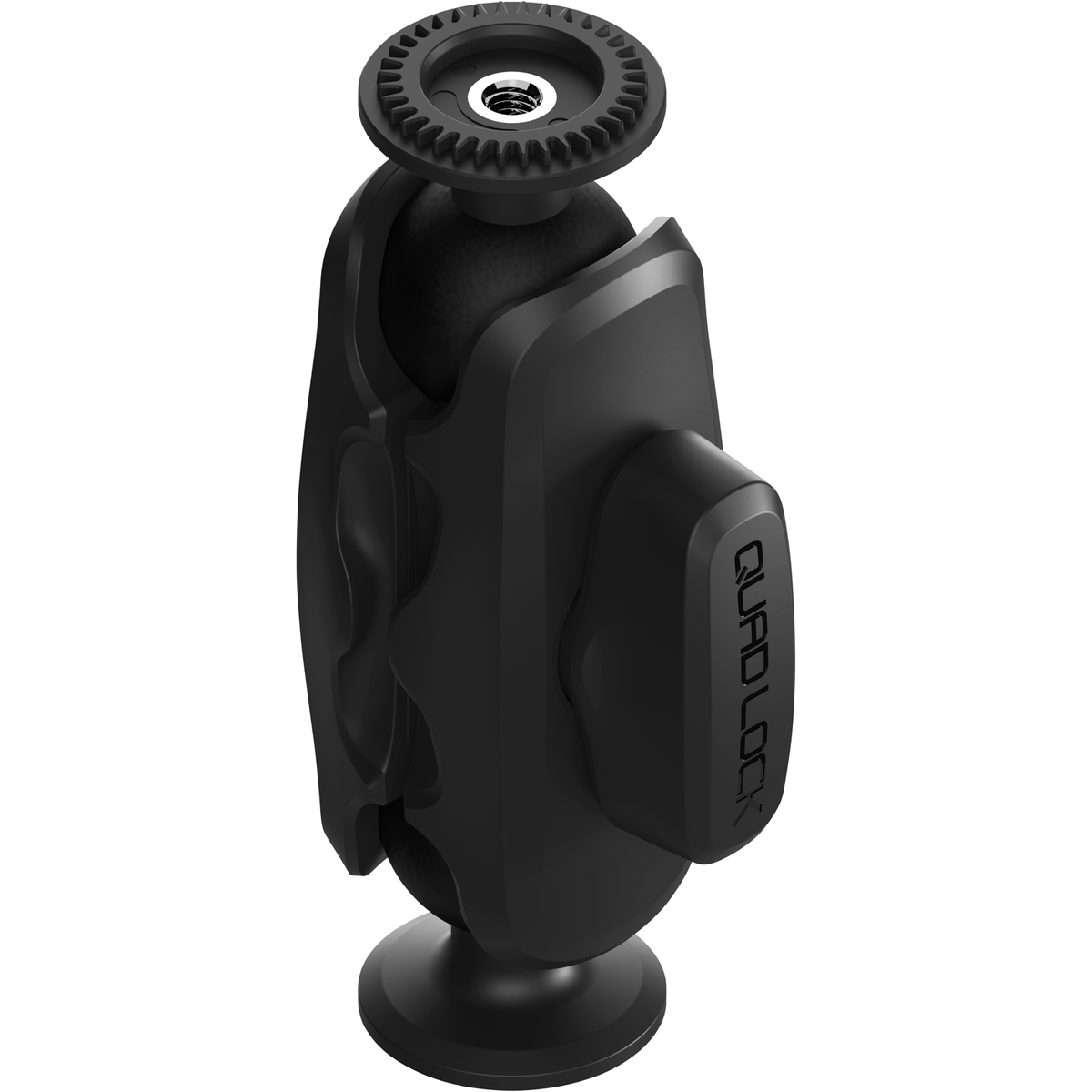

Quad Lock 360 Arm - Dual Pivot Small

Specifications

Product details

The Dual Pivot Arm gives you extra leverage and helps you set up the right viewing angle. It is made in two lengths, small (51mm/2") and medium (75mm/3"), and both work with every Quad Lock 360 HEAD and BASE.

The arm rotates through 360 degrees x 180 degrees, and the ball heads at each end add a further 180 degrees and 360 degrees of movement, so you have plenty of angle options.

Two adjustment options are provided: a Hex Screw for anti-theft protection, or a Thumb Screw for quick changes while you are out. Both use preload tension, so the arm stays together while you change the angle, yet it can still be removed easily from the base connecting ball when needed.

Please note: Dual Pivot Arms are not designed to work with RAM mounting systems. The 1" Ball Adaptor is the compatible option for those.

Tech specs

• Tough glass filled nylon arms
• Preload tension design for easy adjustment
• Grooves on two sides of the arm keep cables tidy
• Pivot to pivot length: 51mm (2") on the Small Arm
• Pivot to pivot length: 75mm (3") on the Medium Arm
• 22mm (7/8") balls

What's included

• One Dual Pivot Arm, 51mm (2") or 75mm (3")
• One Thumb Screw (replaces the Hex Screw)
• One 3mm Hex Key
